Quick facts about
ULC HU 200 / ULC HU 500 Kg

  • Speed: Programmable speed control from 1 Km/hour to a maximum of 7.2 Km/hour
  • Runtime: 16hrs continuous / 22hrs standby
  • Capacity: 200 Kgs or 500 Kgs
  • Dimensions: 817x692 mm
  • Movement: Forward and Backward
  • Rotation: In-place rotation

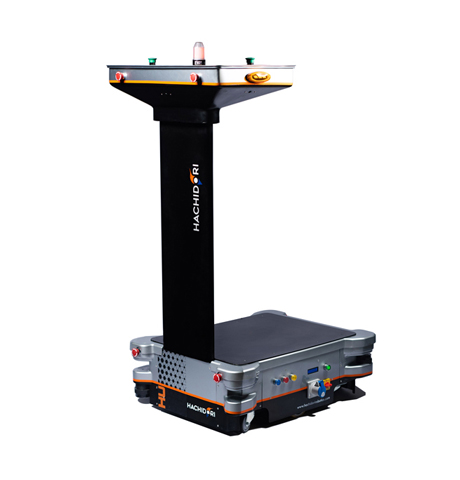

product image

Technology Benefits

  • Programmable speed: 1kmph-7.2kmph
  • Patented technology: 1st Unique indoor wireless natural navigation system
  • Deployable areas: Both Greenfield and Brownfield Projects
  • No Flooring changes: No expensive magnetic strips, floor markings needed

Product Benefits

  • Reduction in Working Capital Locked: On time material delivery with material movement tracking(24x7)
  • Reduction in Operating expenses: Visible gains in Productivity and Operating expenses with AMR available as service
  • Optimized Movement: Flexibility of AMR allows optimal movement of material which provides insight of the factory based on material movement
  • UBER of AMR: On demand AMR inside your factory

Specification

Features Variants
HU 200 HU 500
Dimensions 817x692x295mm
Movement Forward & Reverse
Speed 1kmph-7.2kmph(programmable)
Battery & Charging cycle LiFePo4(Upto 16 hours of continuous operation, 2 hours for charging).
Rotation In-Place Rotation.
Safety standards UL 1012,UL 60950
Obstruction Detection 2 D LIDARS & Optional depth camera
Navigation Wireless Natural Navigation
Incline angle 8° for short distance and flat surface. 2° for short distance
Capacity 200Kgs 500Kgs

Other Products

...

Tugger Solution HT

Tugging solution with one or more wagons to be tugged – suitable for bulky light weight materials, off shape materials.

...

Tunneling Solution HL

The Lift & move solution for lifting existing materials trolley and platform.

...

Dock/Convey Solution HDC

Docking with specific work bench and conveying materials from & to work bench.

...

Autonomous Pallet movement HPC

AMRs to lift & move standard Palletized materials.
